エクセルの色の指定のLong値(10進数)とRGBとCMYKとRYBの相互変換…をしたかった

RGBをCMYKに変換は

CMYKとRGBの相互変換で参照したところ

technotype

http://www.technotype.net/tutorial/tutorial.php?fileId={Image%20processing}&sectionId={converting-between-rgb-and-cmyk-color-space}

RGBとCMYKのお話 | ぺんラボブログ

http://www.penlabo.net/archives/942

このへんをみて

Cyan C=(1-R-K)/(1-K)

Magenta M=(1-G-K)/(1-K)

Yellow Y=(1-B-K)/(1-K)

Black(K) K=最小値(1-R,1-G,1-B)

CMYKをRGBに変換

Red R=1-最小値(1,C*(1-K)+K)

Green G=1-最小値(1,M*(1-K)+K)

Blue B=1-最小値(1,Y*(1-K)+K)

CMYKとRGBの相互変換の式はこうらしい

色の範囲が違うせいか可逆ではなくて不可逆

エクセルVBAだとこんな感じになった

’RGB3つの値の入れ物myRGB
Type myRGB
    iRed As Integer
    iGreen As Integer
    iBlue As Integer
End Type

’CMYK4つの値の入れ物myCMYK
Type myCMYK
    iC As Double
    iM As Double
    iY As Double
    iK As Double
End Type
’Long値(セルの塗りつぶしの色とか)をRGBに変換
Function Color2RGB(ByVal myColor As Long) As myRGB
'Color(Long)をRGBにして返す
    Dim iRGB As myRGB
    With iRGB
        .iRed = myColor Mod 256
        .iGreen = Int(myColor / 256) Mod 256
        .iBlue = Int(myColor / 256 / 256)
    End With
    Color2RGB = iRGB
End Function
’CMYKをRGBに変換
Function CMYK2RGB(iCMYK As myCMYK) As myRGB
    Dim iRGB As myRGB
    Dim R As Double, g As Double, b As Double
    Dim Cyan As Double, Mage As Double, Yell As Double, Kblc As Double
    With iCMYK
        Cyan = .iC / 100
        Mage = .iM / 100
        Yell = .iY / 100
        Kblc = .iK / 100
    End With
    With WorksheetFunction
'        r = CInt(1 - (.min(1, Cyan * (1 - Kblc) + Kblc)) * 255)
        R = .min(1, Cyan * (1 - Kblc) + Kblc)
        g = .min(1, Mage * (1 - Kblc) + Kblc)
        b = .min(1, Yell * (1 - Kblc) + Kblc)
    End With
    R = CInt((1 - R) * 255)
    g = CInt((1 - g) * 255)
    b = CInt((1 - b) * 255)
    With iRGB
        .iRed = R
        .iGreen = g
        .iBlue = b
    End With
    CMYK2RGB = iRGB

End Function
’Long値(セルの塗りつぶしの色)をCMYKに変換
Function Color2CMYK(myColor As Long) As myCMYK
    Dim iRGB As myRGB
    Dim iCMYK As myCMYK
    Dim R As Double, g As Double, b As Double
    Dim Cy As Double, Ma As Double, Ye As Double, Kb As Double
    iRGB = Color2RGB(myColor)
    With iRGB
        R = .iRed / 255
        g = .iGreen / 255
        b = .iBlue / 255
    End With
'        .iK = WorksheetFunction.min(1 - r, 1 - g, 1 - b)
    Kb = 1 - WorksheetFunction.max(R, g, b)
    If Kb <> 1 Then
        Cy = (1 - R - Kb) / (1 - Kb)
        Ma = (1 - g - Kb) / (1 - Kb)
        Ye = (1 - b - Kb) / (1 - Kb)
    End If
    With iCMYK
        .iC = Cy
        .iM = Ma
        .iY = Ye
        .iK = Kb
    End With

    Color2CMYK = iCMYK
End Function
'CMYKボタンのクリックイベント
Private Sub CButtonDisplayCMYK_Click()
    Dim R As Range
    Dim iRGB As myRGB
    Dim iCMYK As myCMYK

    If TypeName(Selection) <> "Range" Then Exit Sub
    For Each R In Selection
        iCMYK = Color2CMYK(R.Interior.Color)
        With iCMYK
            R.Value = "'" & CInt(.iC * 100) & "," & CInt(.iM * 100) & "," & CInt(.iY * 100) & "," & CInt(.iK * 100)
        End With
    Next
End Sub

CMYKとRGBの変換式はたくさんの解答があったのでほとんどコピペでできた

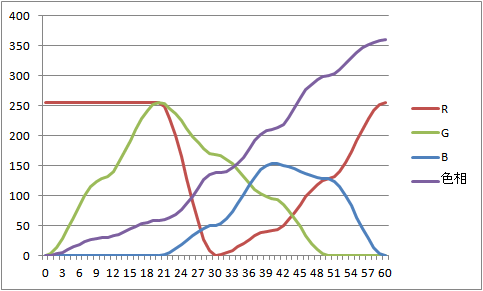

問題はRYB

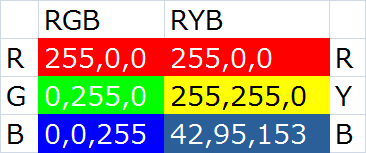

基準になるそれぞれの色のRGBの値

同じB(青)でも違う

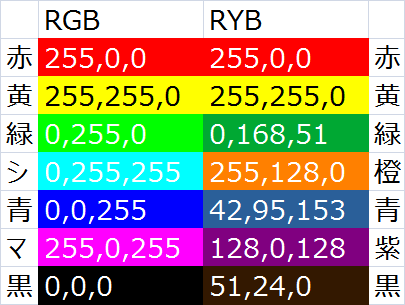

その他の基準？になる色の違い

赤と黄色以外はかなり違う、これが面白い

RYBをRGBに変換するのはJavaScript？のコードが見つかったので

ryb/RXB.js at gh-pages · bahamas10/ryb · GitHub

https://github.com/bahamas10/ryb/blob/gh-pages/js/RXB.js#L252-L330

これをエクセルVBAで書いてみたのが

Function MagicColors()
    Dim magic, mW, my, mR, mO, mB, mg, mP, mK
    mW = Array(1, 1, 1)         '白
    my = Array(1, 1, 0)         '黄色
    mR = Array(1, 0, 0)         '赤
    mO = Array(1, 0.5, 0)       '橙
    mB = Array(0.163, 0.373, 0.6) '青
    mg = Array(0, 0.66, 0.2)    '緑
    mP = Array(0.5, 0, 0.5)     '紫
    mK = Array(0.2, 0.094, 0)   '黒
    magic = Array(mW, my, mR, mO, mB, mg, mP, mK)

    MagicColors = magic

End Function
Function cubicInt(t, A, b)
    Dim myWeight
    myWeight = t * t * (3 - 2 * t)
    cubicInt = A + myWeight * (b - A)
End Function
Function getR(iR, iY, iB, magic)
    Dim x0, x1, x2, x3, y0, y1

    x0 = cubicInt(iB, magic(0)(0), magic(4)(0))
    x1 = cubicInt(iB, magic(1)(0), magic(5)(0))
    x2 = cubicInt(iB, magic(2)(0), magic(6)(0))
    x3 = cubicInt(iB, magic(3)(0), magic(7)(0))
    y0 = cubicInt(iY, x0, x1)
    y1 = cubicInt(iY, x2, x3)
    getR = cubicInt(iR, y0, y1)
End Function
Function getG(iR, iY, iB, magic)
    Dim x0, x1, x2, x3, y0, y1

    x0 = cubicInt(iB, magic(0)(1), magic(4)(1))
    x1 = cubicInt(iB, magic(1)(1), magic(5)(1))
    x2 = cubicInt(iB, magic(2)(1), magic(6)(1))
    x3 = cubicInt(iB, magic(3)(1), magic(7)(1))
    y0 = cubicInt(iY, x0, x1)
    y1 = cubicInt(iY, x2, x3)
    getG = cubicInt(iR, y0, y1)
End Function
Function getB(iR, iY, iB, magic)
    Dim x0, x1, x2, x3, y0, y1

    x0 = cubicInt(iB, magic(0)(2), magic(4)(2))
    x1 = cubicInt(iB, magic(1)(2), magic(5)(2))
    x2 = cubicInt(iB, magic(2)(2), magic(6)(2))
    x3 = cubicInt(iB, magic(3)(2), magic(7)(2))
    y0 = cubicInt(iY, x0, x1)
    y1 = cubicInt(iY, x2, x3)
    getB = cubicInt(iR, y0, y1)
End Function
Function RYB2RGBtest(iRYB As TypeRYB) As myRGB
    r = iRYB.iR
    Y = iRYB.iY
    b = iRYB.iB

    Dim magic
    magic = MagicColors

    Dim R1, G1, B1
    R1 = getR(r, Y, b, magic)
    G1 = getG(r, Y, b, magic)
    B1 = getB(r, Y, b, magic)

    R1 = R1 * 255
    G1 = G1 * 255
    B1 = B1 * 255
    R1 = WorksheetFunction.Ceiling(R1, 1)
    G1 = WorksheetFunction.Ceiling(G1, 1)
    B1 = WorksheetFunction.Ceiling(B1, 1)
    Dim iRGB As myRGB
    With iRGB
        .iRed = R1
        .iGreen = G1
        .iBlue = B1
    End With
    RYB2RGBtest = iRGB
End Function

上のRYBをRGBに変換するのを使うときはこんな感じ

Sub testryb2rgb()
    Dim iRYB As TypeRYB
    Dim iRGB As myRGB
    With iRYB
        .iR = 0
        .iY = 1
        .iB = 1
    End With
    iRGB = RYB2RGBtest(iRYB)
End Sub

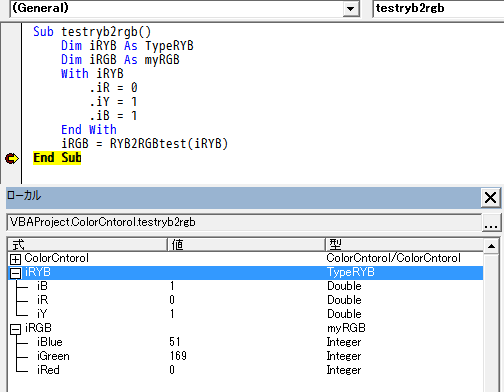

これを実行すると

R=0、G=169、B=51が得られる

’RYBの青(0,0,1)をRGBに変換

Sub testryb2rgb()

Dim iRYB As TypeRYB

Dim iRGB As myRGB

With iRYB

.iR = 0

.iY = 0

.iB = 1

End With

iRGB = RYB2RGBtest(iRYB)

End Sub

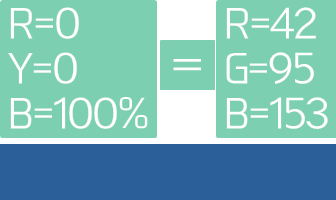

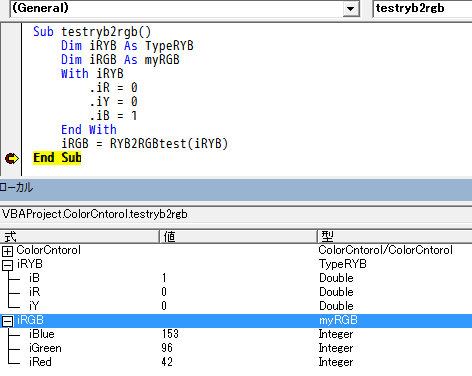

R=42,G=96,B=153

本当はG=95みたいなんだけど1違うのは小数点を切り上げているからかな

でもだいたいあっている

ってことでRYBをRGBに変換はできたんだけど

逆のRGBをRYBに変換するのが見つからない

というか見つかるのは本当のRYBじゃなくてRYBに似たものしか見つからない

本当のRYBのB(青)はRGBに変換すると42,95,153になる青

これがRYBの基準になるB(青)

RGBのB(青)(0,0,255)はこれ

見つかるのはRGBのBにRYBのBを合わせたものばかり

node-rgb2ryb/rgb2ryb.js at master · bahamas10/node-rgb2ryb · GitHub

https://github.com/bahamas10/node-rgb2ryb/blob/master/rgb2ryb.js

拡張子みたいなのが.jsだからJavaScriptなのかな

これにはRGBとRYBの相互変換が書いてあるので両方共エクセルVBAで書いて

gogowaten.hatenablog.com

で使っているのが↓になる

’RGBをRYBに似たものに変換
Function RGB2RYB(iRGB As myRGB) As TypeRYB
    Dim r, g, b
    r = iRGB.iRed / 255
    g = iRGB.iGreen / 255
    b = iRGB.iBlue / 255
    Dim w
    w = WorksheetFunction.min(r, g, b)
    r = r - w
    g = g - w
    b = b - w
    Dim mg
    mg = WorksheetFunction.max(r, g, b)
    Dim Y
    Y = WorksheetFunction.min(r, g)
    r = r - Y
    g = g - Y
    If b <> 0 And g <> 0 Then
        b = b / 2
        g = g / 2
    End If

    Y = Y + g
    b = b + g

    Dim my
    my = WorksheetFunction.max(r, Y, b)
    If my <> 0 Then
        Dim n
        n = mg / my
        r = r * n
        Y = Y * n
        b = b * n
    End If

    r = r + w
    Y = Y + w
    b = b + w

    Dim iRYB As TypeRYB
    With iRYB
        .iR = r
        .iY = Y
        .iB = b
    End With
    RGB2RYB = iRYB

End Function

’RYBに似たものからRGBに変換
Function RYB2RGB(iRYB As TypeRYB) As myRGB
    Dim w
    Dim r, Y, b
    With iRYB
        r = .iR
        Y = .iY
        b = .iB
    End With

    w = WorksheetFunction.min(r, Y, b)
    r = r - w
    Y = Y - w
    b = b - w

    Dim my
    my = WorksheetFunction.max(r, Y, b)
    Dim g
    g = WorksheetFunction.min(Y, b)
    Y = Y - g
    b = b - g
    If b <> 0 And g <> 0 Then
        b = b / 2
        g = g / 2
    End If

    r = r + Y
    g = g + Y

    Dim mg
    mg = WorksheetFunction.max(r, g, b)
    If mg <> 0 Then
        Dim n
        n = my / mg
        r = r * n
        g = g * n
        b = b * n
    End If

    r = r + w
    g = g + w
    b = b + w

    Dim iRGB As myRGB
    With iRGB
        .iRed = CInt(r * 255)
        .iGreen = CInt(g * 255)
        .iBlue = CInt(b * 255)
    End With

    RYB2RGB = iRGB

End Function
