昨日のを書き直した、WPF、マス目に敷き詰めたThumb、マウスドラッグ移動で入れ替え
動作
動作結果は昨日のもので満足していたので、ほとんど同じ
コード
作成動作環境
- Windows 10 Home バージョン 2004
- Visual Studio Community 2019
- WPF
- C#
- .NET 5
動作に必要なのは.NET 5がインストール済みのWindowsで、.NET Frameworkだけでは動かないはず
MainWindow.xaml
これは昨日と変わらず
<Window x:Class="_20210302_Thumb移動入れ替え2回め.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:_20210302_Thumb移動入れ替え2回め" mc:Ignorable="d" Title="MainWindow" Height="450" Width="600"> <Grid> <DockPanel> <StatusBar DockPanel.Dock="Bottom"> <StatusBarItem x:Name="MyStatus" Content="status"/> </StatusBar> <Canvas x:Name="MyCanvas" UseLayoutRounding="True"/> </DockPanel> </Grid> </Window>
MainWindow.xaml.cs
using System; using System.Collections.Generic; using System.Windows; using System.Windows.Controls; using System.Windows.Media; using System.Windows.Controls.Primitives; using System.Collections.ObjectModel; // _20210227_thumb移動入れ替え //↑の改良版、入れ替え処理判定を面積から距離にした namespace _20210302_Thumb移動入れ替え2回め { public partial class MainWindow : Window { private const int MASU_X = 5;//横に並べる個数指定 private const int MASU_Y = 3;//縦 private const int MASU_WIDTH = 80;//Thumbの横幅指定 private const int MASU_HEIGHT = 80;//縦幅 //Thumbのリスト private ObservableCollection<FlatThumb> MyThumbs; //座標リスト private List<Point> MyPoints; public MainWindow() { InitializeComponent(); MyInitialize(); } private void MyInitialize() { MyPoints = new List<Point>(); MyThumbs = new ObservableCollection<FlatThumb>(); //Thumbを作成、表示 for (int y = 0; y < MASU_Y; y++) { for (int x = 0; x < MASU_X; x++) { FlatThumb t = new($"{(y * MASU_X) + x}") { Width = MASU_WIDTH, Height = MASU_HEIGHT, Opacity = 0.7, FontSize = 40 }; MyCanvas.Children.Add(t); Canvas.SetLeft(t, x * MASU_WIDTH); Canvas.SetTop(t, y * MASU_HEIGHT); t.DragDelta += Thumb_DragDelta; t.DragCompleted += Thumb_DragCompleted; MyThumbs.Add(t); //基本座標セット Point p = new(x * MASU_WIDTH, y * MASU_HEIGHT); MyPoints.Add(p); } } } //ドラッグ移動終了イベント時、 //Indexに対応した位置に移動させる private void Thumb_DragCompleted(object sender, DragCompletedEventArgs e) { FlatThumb t = sender as FlatThumb; int imaIndex = MyThumbs.IndexOf(t); //元のx座標へ移動 Canvas.SetLeft(t, MyPoints[imaIndex].X); Canvas.SetTop(t, MyPoints[imaIndex].Y); MyStatus.Content = ""; } /// <summary> /// ドラッグ移動中のThumbとその他のThumbとの重なり合う部分の面積を計算、 /// 一定以上の面積があった場合、場所を入れ替えて整列 /// </summary> /// <param name="t">ドラッグ移動中のThumb</param> /// <param name="x">Canvas上でのX座標</param> /// <param name="y">Canvas上でのY座標</param> private void Idou移動中処理(FlatThumb t, double x, double y) { t.Opacity = 0.7; int imaIndex = MyThumbs.IndexOf(t);//ドラッグ移動中ThumbのIndex MyStatus.Content = imaIndex.ToString(); //最寄りのPoint int moyoriIndex = 0; double moyori距離 = double.MaxValue; for (int i = 0; i < MyPoints.Count; i++) { double distance = GetDistance(MyPoints[i], new Point(x,y)); if (distance < moyori距離) { moyori距離 = distance; moyoriIndex = i; } } //最短距離のIndexと移動中のThumbのIndexが違うなら入れ替え処理 if (moyoriIndex != imaIndex) { //Thumbリストのindexを入れ替え MyThumbs.RemoveAt(imaIndex); MyThumbs.Insert(moyoriIndex, t); //indexに従って表示位置変更 ReplaceThumb表示位置更新(moyoriIndex); } } //2点間距離 private double GetDistance(Point a, Point b) { return Math.Sqrt((a - b) * (a - b)); } /// <summary> /// すべてのThumbの表示位置を更新 /// </summary> /// <param name="avoidIndex">ドラッグ移動中のThumbのindex</param> private void ReplaceThumb表示位置更新(int avoidIndex) { for (int i = 0; i < MyThumbs.Count; i++) { if (i == avoidIndex) continue;//移動中のThumbは変更しない Canvas.SetLeft(MyThumbs[i], MyPoints[i].X); Canvas.SetTop(MyThumbs[i], MyPoints[i].Y); } } //ドラッグ移動イベント時 private void Thumb_DragDelta(object sender, DragDeltaEventArgs e) { //移動 FlatThumb t = sender as FlatThumb; double x = Canvas.GetLeft(t) + e.HorizontalChange; double y = Canvas.GetTop(t) + e.VerticalChange; Canvas.SetLeft(t, x); Canvas.SetTop(t, y); t.Opacity = 0.5; Idou移動中処理(t, x, y); } } public class FlatThumb : Thumb { private Grid MyPanel; public FlatThumb(string text) { ControlTemplate template = new(typeof(Thumb)); template.VisualTree = new FrameworkElementFactory(typeof(Grid), "panel"); this.Template = template; this.ApplyTemplate(); MyPanel = (Grid)template.FindName("panel", this); MyPanel.Background = Brushes.Aqua; MyPanel.Children.Add(new TextBlock() { Text = text, TextAlignment = TextAlignment.Center, VerticalAlignment = VerticalAlignment.Center }); MyPanel.Children.Add(new Border() { BorderBrush = Brushes.MediumBlue, BorderThickness = new Thickness(1) }); } } }
昨日は270行だったのが180行まで減った!
これは昨日と同じ
大きな変更は入れ替え対象となるThumbの決定方法で、昨日は面積だったのを距離で判定することにした
ドラッグ移動中のThumbとの距離が一番近いマスをドラッグ移動中のThumbのマスとして、そのマスが今のマスと違っていたら入れ替え処理
移動中のThumbの左上の座標と、すべてのマスの左上の座標との距離を測る
距離を矢印にして表すと

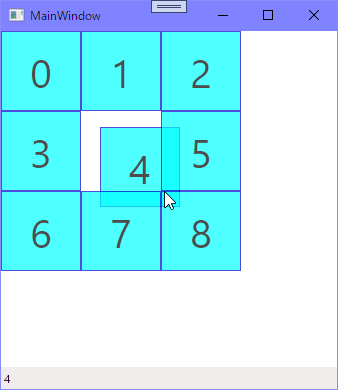

こうで、一番近いのは元のマス、なのでこの状態では入れ替えは発生しない
ここからさらに下に動かして入れ替えになると
移動中のThumbが7番と入れ替え、入れ替えというより7番に移動かな
距離を見てみると
赤の矢印、7番のマスが一番近い
21行目
並べるThumb群を入れておくリストも昨日と同じ、変更通知を受け取れるObservableCollectionを使っているけど、普通のList
23行目
Pointのリスト
これは各Thumbの位置(左上)に対応した座標を入れておく
配置は左上から右下へなので、3x3のときは
こうで、
横幅 = 100、 縦幅 = 100のとき各Thumbの左上の座標は
こんな感じで
Pointにしてこうで、これを元にして各Thumbを配置
Thumbリストはこんな感じで、移動が発生したら
4番から7番へ移動の場合、4番をリストから一旦削除して
削除後はこうなって、7番に4番を挿入
Thumbリストで変更があったので、Pointリストに従って再配置する。t4は7番に移動したことで配置場所は(100, 100)から(100, 200)に移動になるし、t5からt7も配置場所が変更になる
DragDeltaイベントのドラッグ移動自体(144行目まで)は機能と同じ
Idou移動中処理(t, x, y);の中が
だいぶ短くなった、もうこれでいい
