表示しているマウスカーソル画像を取得表示してみた、WinAPIとWPF
0.1秒ごとにマウスカーソル画像をいくつかの方法で取得して表示している
WinAPIを使ってカーソルのハンドルやカーソル画像のハンドルを取得して
WPF(.NET)の
System.Windows.Interop.Imaging.CreateBitmapSourceFromHIcon
System.Windows.Interop.Imaging.CreateBitmapSourceFromHBitmap
を使ってBitmapSourceを作成している
マウスカーソルのハンドルから画像作成
[DllImport("user32.dll")]
private static extern IntPtr GetCursor();
GetCursor()で取得したハンドルを
Imaging.CreateBitmapSourceFromHIconにわたす
例えば
Imaging.CreateBitmapSourceFromHIcon(GetCursor(), Int32Rect.Empty, BitmapSizeOptions.FromEmptyOptions());
これだけでカーソル画像が取得できる、けど

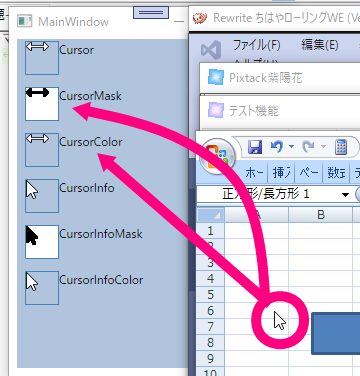

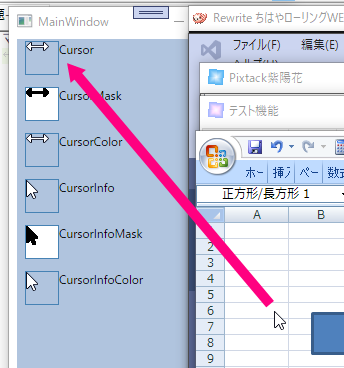

形が違う、タイミングによっては同じになることもあるけど、当てにならない
アイコンの情報を取得する

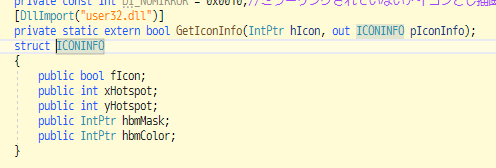

マウスカーソルのハンドルをGetIconInfoに渡すと、いろいろ情報が得られる
その中の、マスク画像のハンドルhbmMaskと、カラー画像?のハンドルhbmColorを
System.Windows.Interop.Imaging.CreateBitmapSourceFromHBitmaに渡すとBitmapSourceが得られた
でも、これも形が違う

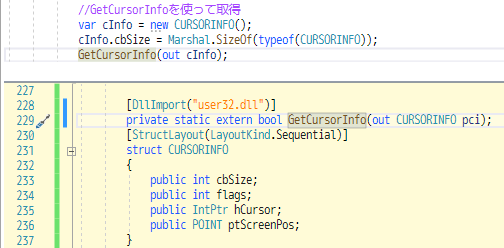

GetCursorInfo()を使う
いろいろカーソルの情報が得られる
その中のhCursorはカーソルのハンドルは、さっきのGetCursor()で得られるカーソルのハンドルとは別のようで、結果は

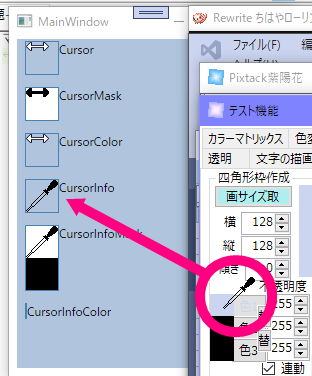

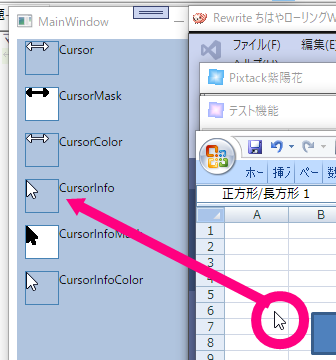

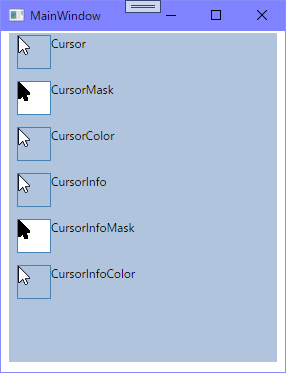

表示されているカーソルと同じのが取得できた!
さらに

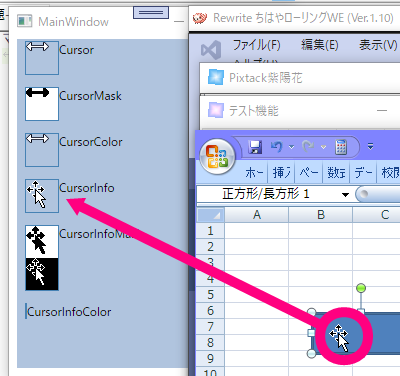

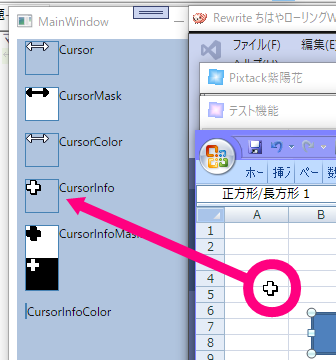

エクセルのシート上での十字形のカーソルも正しく取得できた
いいね
自作した大きめなマウスカーソルも取得できている
0.1秒ごとの取得だから少しラグがあるけど、アニメーションするカーソルも取得できてたのは意外だった
マスクが必要なカーソル?

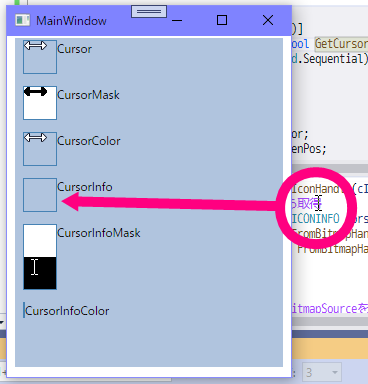

テキストエディタとかテキスト編集中のI型カーソルは残念ながら取得できていない、影も形もない完全透明画像が取得されている
それっぽいのが取得できたのは
GetCursorInfo()で得たマウスカーソルのハンドルを、GetIconInfo()に渡して得られるマスク画像のハンドルから作成する方法だった
白背景に白画像はわかりにくかったので
32x64ピクセルの縦長の画像の下半分にマウスカーソルが表示されている
マスク画像ってのは他の画像と重ね合わせて使うみたいなんだけどねえ、まだわかってない
今回試したことでわかったのは
GetCursorInfoを使えばいい
これで取得できないカーソルはGetCursorInfoとIconInfoで得られるマスク画像を使ってなんとかする
参照したところ
C# - Capturing the Mouse cursor image - Stack Overflow
https://stackoverflow.com/questions/918990/c-sharp-capturing-the-mouse-cursor-image
c# - j_C#_j-Mousecursorイメージのキャプチャ
https://python5.com/q/ukmbkppc
C# - マウスカーソルイメージのキャプチャ
https://www.366service.com/jp/qa/24498664dd5f63c42b15614906b07ff2
このあたりを見ると、マスク画像の上半分をAND、下半分をXORで使うとあって、その処理はAPIのBitBlt()を使っている
API 関数解説
https://www.tokovalue.jp/function/BitBlt.htm
こちらを見ると、BitBltにはオプションがあって、SRCERASEでAND演算、SRCINVERTでXOR演算できるみたいなんだけど、BitBltはDCとかビットマップオブジェクトとか、よくわからんから普通の画像処理としてWPFで行いたいんだよねえ
カーソルと重なった部分の色
ここを拡大してみる

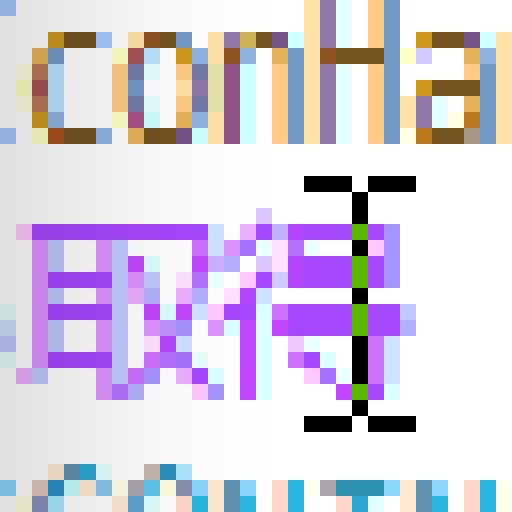

文字がない部分は白が黒に変化している、つまり色が反転している、これはわかる、白地に白のカーソルのままじゃ見分けがつかない
一方、文字の紫の部分は緑色になっている
それぞれのRGB値を確認したら
167, 70, 255 紫
88, 185, 000 緑
だった
この辺のマスク処理は次回

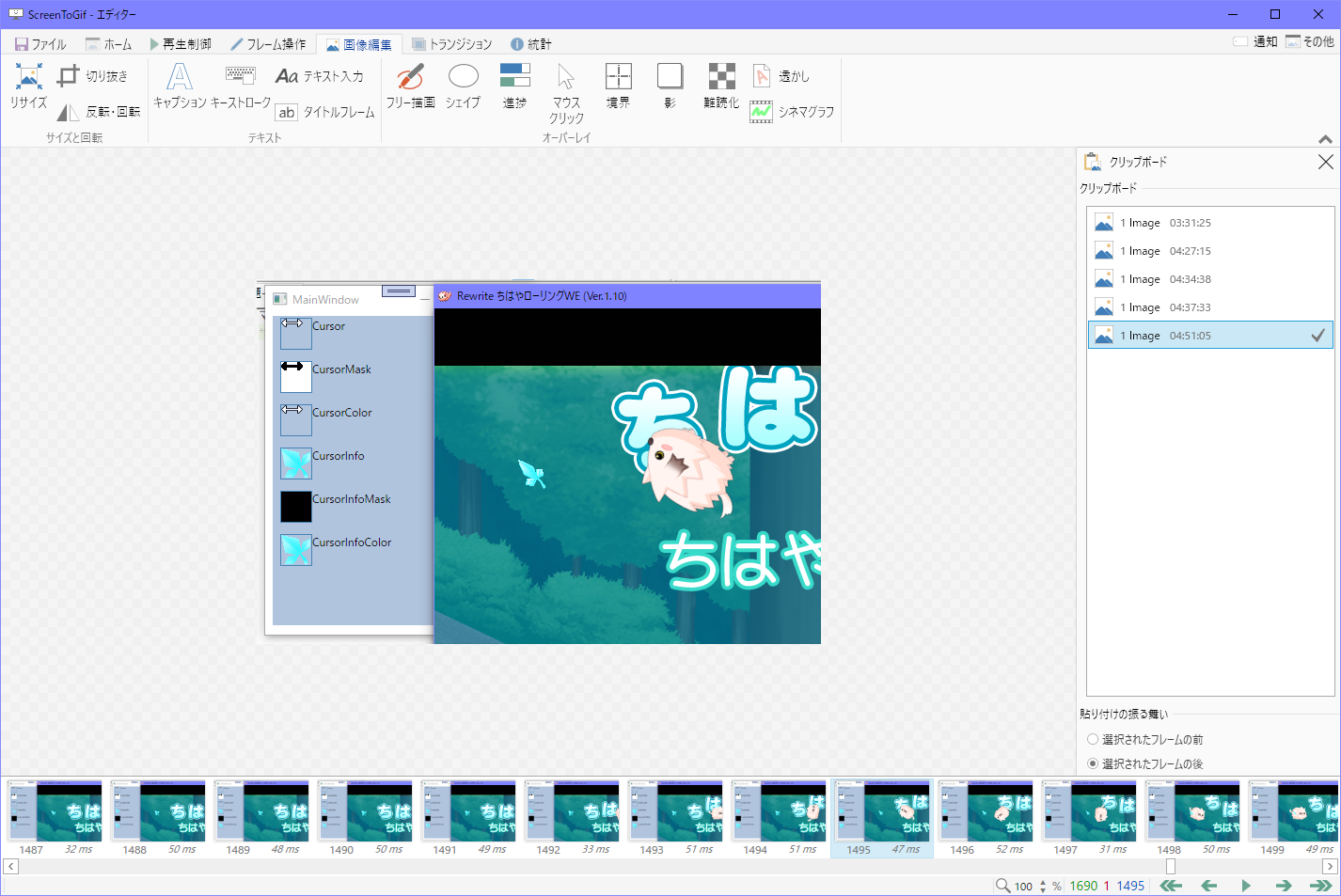

ScreenToGifでスクショ
今まであるの気づかなかった

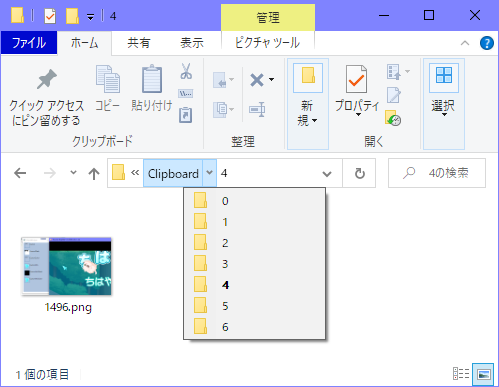

メニューのホームのコピーをクリック、もしくはCtrl+C押すと、表示しているフレームの画像がクリップボードに格納されるってあったんだけど、実際にはクリップボードには格納されずに、ScreenToGifのClipboardフォルダに1枚毎別々のフォルダが作成されてそこに保存された
…1ファイルごとに1フォルダはあかんやろwどっかに設定があるのか新しいバージョンでは直ってるのかな、でもマウスカーソルつきのスクリーンショットが撮れるのはとても便利

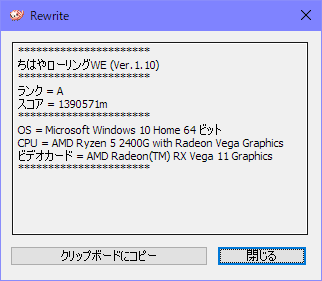

ベンチマークの結果
普通だ!
ステキ!!?な環境
- Windows 10 Home
- Visual Studio 2019 Community
- C#、WPF、.NET Core 3.1
- Excel 2007
2020WPF/20201120_マウスカーソル画像取得
