C#SIMDで合計値、byte型配列をIntrinsicsとNumericsのAddで合計値の処理速度
IntrinsicsとNumericsのAddでbyte型配列の合計値を計算
使ったアプリは
AVX2をサポートしていないCPUだと動かないかも?
Intel CPUだとHaswellコアから対応なので第4世代、2013年以降
AMD CPUだとZenコアから対応なので、Ryzen全部とAthlonでもZenコアなら対応している、2017年以降
でも、ここみたら
pc.watch.impress.co.jp
Bulldozer系の場合は、256-bit幅のAVX2命令は、フロントエンドで2個のMacroOPに変換(Fast-Path Double)されていた。
ってあるから動くことは動くのかなあ、動きそうだなあ
ダウンロード先はギットハブ
ファイル名は、20200227_IntrinsicsAdd.zip
github.com
製作と計測環境
- CPU AMD Ryzen 5 2400G(4コア8スレッド)
- MEM DDR4-2666
- Window 10 Home 64bit
- Visual Studio 2019 Community .NET Core 3.1 WPF C#
.NET Frameworkだと参照の追加がめんどくさいので.NET Core 3.1
実行したところ
byte型配列の要素数は1千万、値は全て255を入れている、これの合計値を1000回求めた時の処理時間
SIMD | 計算時の型 | マルチスレッド | |
Test1 | 未使用 | long | |
Test2 | 未使用 | long | 使用 |
Test3 | 未使用 | long | |
Test4 | Intrinsics | int | |
Test5 | Intrinsics | int | 使用 |
Test6 | Intrinsics | int | 使用 |
Test7 | Intrinsics | long | 使用 |
Test8 | Numerics | uint | |
Test9 | Numerics | uint | 使用 |
Test10 | Numerics | long | 使用 |
合計値 | 一斉1回目 | 一斉2回目 | 一斉3回目 | 個別 | 平均 | 分散 | 平均2 |
Test1_Normal | 3.642 | 5.338 | 5.391 | 5.459 | 4.958 | 0.579 | 5.396 |
Test2_Normal_MT | 1.387 | 1.364 | 1.427 | 1.792 | 1.493 | 0.030 | 1.493 |
Test3_Normal4 | 3.395 | 3.414 | 3.391 | 3.426 | 3.407 | 0.000 | 3.407 |
Test4_Intrinsics_int | 0.932 | 0.953 | 0.945 | 0.943 | 0.943 | 0.000 | 0.943 |
Test5_Intrinsics_int_MT | 0.388 | 0.402 | 0.392 | 0.365 | 0.387 | 0.000 | 0.387 |
Test6_Intrinsics_int_MT2 | 0.417 | 0.444 | 0.400 | 0.395 | 0.414 | 0.000 | 0.414 |
Test7_Intrinsics_long_MT | 0.514 | 0.531 | 0.590 | 0.547 | 0.546 | 0.001 | 0.546 |
Test8_Numerics_uint | 1.406 | 1.356 | 1.349 | 1.376 | 1.372 | 0.000 | 1.372 |
Test9_Nunerics_uint_MT | 0.556 | 0.502 | 0.505 | 0.453 | 0.504 | 0.001 | 0.504 |
Test10_Numerics_long_MT | 0.958 | 0.964 | 0.899 | 0.892 | 0.928 | 0.001 | 0.928 |
Test1の1回目だけが変な値になったので、これを無視しての平均2で比較することにした

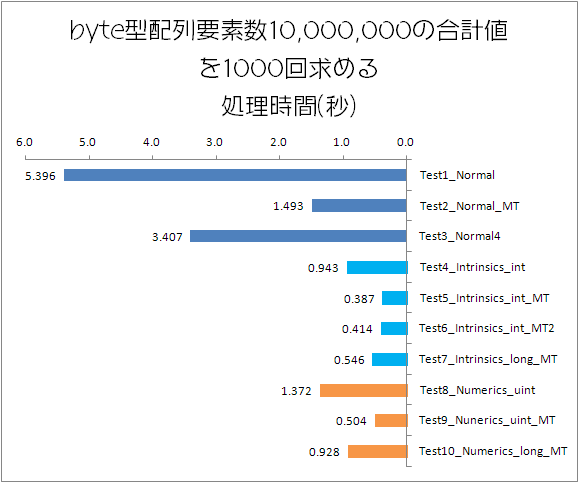

グラフにして
水色がIntrinsics、オレンジ色がNumerics
今回はNumericsよりもIntrinsicsのほうが速い結果になった
追加using
using System.Runtime.Intrinsics; using System.Runtime.Intrinsics.X86; using System.Numerics; using System.Collections.Concurrent; using System.Diagnostics;
いつものように計算に使うbyte型配列をフィールドに用意しておいて19行目
アプリ起動時に値を入れる、26行目
今回はbyte型の最大値255で埋める、この配列を各メソッドに渡して、
時間計測は
いつもの
SIMDを使わない普通の足し算
遅い、これを基準にしていく
Parallel.ForEachでマルチスレッド化
Partitionerでの区切りサイズはCPUのスレッド数にした、割り切れなかったときは、区切りが1つ増えて、そこにあまりの要素が入る (これ以降もマルチスレッド化での区切りは同じ方法)
マルチスレッド化で3.6倍速くなった、だいたいCPUのコア数4個分速くなる
シングルだけどForの中で4つづつ処理
前回試して速くなったので今回も試した結果、1.6倍速くなった。
ここからSIMDを使うIntrinsics
シングルスレッドで計算はint型Vector256
方法は前回と同じで、Avx2.Minで最小値を求めていたのを足し算のAvx2.Addに変えただけ、118行目
これで5.7倍速
byte型Vectorだとオーバーフローするので、int型で足し算するためにAvx2.ConvertToVector256Int32を使って、byte型配列のポインタからint型Vector256を作成している、118行目
これがNumericsより速い原因だと思う。byte型から直接int型
Intrinsicsだとbyte→int
Numericsだとbyte→ushort→uint
マルチスレッド化して
14倍速、これが今回最速
これを少し改変したのがTest6
少し遅くなった。スレッドごとの集計はVectorのままにして、192行目
マルチスレッドを抜けた後にまとめて集計するようにしただけ、212行~
どうかなと思ったんだけど遅くなったねえ
Test5をlong型での足し算に変更
一度の計算できる個数がintの8から4に減るから遅くなるけど、ntrinsicsとNumericsのAddでbyte型配列の合計値を計算
できる桁は増える
速度は9.9倍速、int型では14倍速だったので、落ち込みは9.9/14=0.70714286と思ったより少なかった
ここからNumerics
シングルスレッドで
速度は3.9倍速
Numericsだとbyte型からintへの変換は、Widenメソッドで2回の変換があるのがねえ、この分がIntrinsicsより遅くなっていそう
マルチスレッド化して
速度は10.7倍速、シングルからだと10.7/3.9=2.7435897、Intrinsicsよりも多少伸びが良いねえ
long型にして
速度は5.8倍速、intからの落ち込みは5.8/10.7=0.54205607と約半減、Intrinsicsのときより大きいのは一度に計算できる個数の半減と変換回数が1回増えてbyte→ushort→uint→ulongってのがあるからなあ
計算できる限界
シングルスレッドでbyte型配列の合計をVector256intで行うときの、最大配列要素数は67,372,032、約6737万。
int型の最大値int.MaxValue = 2147483647は約21億
int型Vectorの要素数Vector256int.Count = 8
byte型の最大値255
Vectorの8個の要素それぞれがint.MaxValueになった状態が、計算できる最大値になるけど、小数点はないので255の倍数でint.MaxValueに一番近い値が実際の最大値(最大個数)になる
これは
int.MaxValue / 255 = 8421504.498で
小数点以下切り捨てた値の
8421504
これがVectorの要素1個あたりの最大数で
これにVector256int.Countの8をかけて
8421504 * 8 = 67372032
これがVector256intで計算できるbyte型配列の要素の最大数になる
正確には8で割り切れなかった余りの要素は個別にlong型で集計しているので
あまりの最大数7を足して
67372032 + 7 = 67372039
になった、約6737万、これは8K解像度の約2倍
8Kの画素数は7680*4320=33177600、約3317万
それに値が255ばかりなんてケースは少ないから十分だと思う
足りなかったら配列を区切って処理すればいいし、マルチスレッド化すれば区切ることになるから一石二鳥、今回のようにマルチスレッド化で8区切りにすれば、それぞれのスレッドで6737万なので8倍すると
67372039 * 8 = 538976312で5億を超える
これでも足りなければもっと細かく区切ればいいだけ
要素数67372039
Test4ではこれが限界
67372039 * 255 = 17179869945
要素数を1個増やしてみると
Test4はオーバーフロー
要素数538976319
これはTest5と6の限界だけど、その前にuintで計算しているTest8がオーバーフローしてたw
要素数を1個増やしてみると
Test5と6もオーバーフロー
このときのアプリのメモリ使用量
500MBを超える
538976320byteは
538976.320KBで
538.976320MBってことか!なるほど
それよりPC全体でのメモリの使用率が70%超えているのがねえ、もっと大きな要素数で試してみたいけどきつい、ちょっと変わったことしようとするとメモリ16GBだと足りないわ32GBほしい
今回の記事はMarkdownモードで書いてみた、いつもの見たままモードの比べると、エクセルからのコピペできないのがめんどくさいけど、コードをそのまま貼り付けられるのはラクでいい!
リアルタイムプレビューを見ながらだと横幅が欲しくなる、マルチモニターかもっと大きな解像度のモニターなら快適だろうねえ
MainWindow.xaml
<Window x:Class="_20200227_IntrinsicsAdd.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:_20200227_IntrinsicsAdd" mc:Ignorable="d" Title="MainWindow" Height="400" Width="614"> <Grid> <StackPanel> <StackPanel.Resources> <Style TargetType="StackPanel"> <Setter Property="Margin" Value="2"/> </Style> <Style TargetType="Button"> <Setter Property="Width" Value="60"/> </Style> <Style TargetType="TextBlock"> <Setter Property="Margin" Value="2,0"/> </Style> </StackPanel.Resources> <TextBlock x:Name="MyTextBlock" Text="text" HorizontalAlignment="Center" FontSize="20"/> <TextBlock x:Name="MyTextBlockVectorCount" Text="vectorCount" HorizontalAlignment="Center"/> <TextBlock x:Name="MyTextBlockCpuThreadCount" Text="threadCount" HorizontalAlignment="Center"/> <StackPanel Orientation="Horizontal" HorizontalAlignment="Center"> <Button x:Name="ButtonAll" Content="一斉テスト" Margin="20,0" Width="120"/> <TextBlock x:Name="TbAll" Text="time"/> <!--<Button x:Name="ButtonReset" Content="reset" Margin="20,0"/>--> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button1" Content="test1"/> <TextBlock x:Name="Tb1" Text="time"/> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button2" Content="test2"/> <TextBlock x:Name="Tb2" Text="time"/> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button3" Content="test3"/> <TextBlock x:Name="Tb3" Text="time"/> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button4" Content="test4"/> <TextBlock x:Name="Tb4" Text="time"/> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button5" Content="test5"/> <TextBlock x:Name="Tb5" Text="time"/> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button6" Content="test6"/> <TextBlock x:Name="Tb6" Text="time"/> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button7" Content="test7"/> <TextBlock x:Name="Tb7" Text="time"/> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button8" Content="test8"/> <TextBlock x:Name="Tb8" Text="time"/> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button9" Content="test9"/> <TextBlock x:Name="Tb9" Text="time"/> </StackPanel> <StackPanel Orientation="Horizontal"> <Button x:Name="Button10" Content="test10"/> <TextBlock x:Name="Tb10" Text="time"/> </StackPanel> </StackPanel> </Grid> </Window>
MainWindow.xaml.cs
using System; using System.Threading.Tasks; using System.Windows; using System.Windows.Controls; using System.Runtime.Intrinsics; using System.Runtime.Intrinsics.X86; using System.Numerics; using System.Collections.Concurrent; using System.Diagnostics; namespace _20200227_IntrinsicsAdd { /// <summary> /// Interaction logic for MainWindow.xaml /// </summary> public partial class MainWindow : Window { private byte[] MyArray; private const int LOOP_COUNT = 1000; private const int ELEMENT_COUNT = 10_000_000;// 538_976_319;// 67_372_039;//要素数 public MainWindow() { InitializeComponent(); MyInitialize(); this.Title = this.ToString(); //var neko = int.MaxValue; //var neko = uint.MaxValue; MyTextBlock.Text = $"byte型配列要素数{ELEMENT_COUNT.ToString("N0")}の合計値を {LOOP_COUNT}回求める"; MyTextBlockVectorCount.Text = $"Vector256<byte>.Count={Vector256<byte>.Count} Vector<byte>.Count={Vector<byte>.Count}"; MyTextBlockCpuThreadCount.Text = $"CPUスレッド数:{Environment.ProcessorCount}"; ButtonAll.Click += (s, e) => MyExeAll(); Button1.Click += (s, e) => MyExe(Test1_Normal, Tb1, MyArray); Button2.Click += (s, e) => MyExe(Test2_Normal_MT, Tb2, MyArray); Button3.Click += (s, e) => MyExe(Test3_Normal4, Tb3, MyArray); Button4.Click += (s, e) => MyExe(Test4_Intrinsics_int, Tb4, MyArray); Button5.Click += (s, e) => MyExe(Test5_Intrinsics_int_MT, Tb5, MyArray); Button6.Click += (s, e) => MyExe(Test6_Intrinsics_int_MT2, Tb6, MyArray); Button7.Click += (s, e) => MyExe(Test7_Intrinsics_long_MT, Tb7, MyArray); Button8.Click += (s, e) => MyExe(Test8_Numerics_uint, Tb8, MyArray); Button9.Click += (s, e) => MyExe(Test9_Nunerics_uint_MT, Tb9, MyArray); Button10.Click += (s, e) => MyExe(Test10_Numerics_long_MT, Tb10, MyArray); } //普通に足し算 private long Test1_Normal(byte[] vs) { long total = 0; for (int i = 0; i < vs.Length; i++) { total += vs[i]; } return total; } //普通に足し算をマルチスレッド化 private long Test2_Normal_MT(byte[] vs) { long total = 0; Parallel.ForEach( Partitioner.Create(0, vs.Length, vs.Length / Environment.ProcessorCount), (range) => { long subtotal = 0; for (int i = range.Item1; i < range.Item2; i++) { subtotal += vs[i]; } System.Threading.Interlocked.Add(ref total, subtotal); }); return total; } //普通に足し算のforの中の足し算を4個 private long Test3_Normal4(byte[] vs) { long total = 0; int lastIndex = vs.Length - (vs.Length % 4); for (int i = 0; i < lastIndex; i += 4) { total += vs[i]; total += vs[i + 1]; total += vs[i + 2]; total += vs[i + 3]; } for (int i = lastIndex; i < vs.Length; i++) { total += vs[i]; } return total; } //Intrinsics + シングルスレッド、int //最大要素数67_372_039(約6737万)まで、これを超えると桁あふれの可能性 //Vector256<int>.Countは8、それぞれでint型最大値の2147483647まで入る、合計すると2147483647*8=1.7179869e+10(171億…) //要素が全てbyte型最大値の255だった場合に171億に入る個数は、17179869176/255=67372035.98、小数点以下切り捨てて //これを8個づつ計算するから8で割ると67372035/8=8421504.4、小数点以下切り捨てて //8421504*8=67372032、これがVectorで桁あふれしないで計算する回数になる //余りはlongで計算するから、ここからさらにあまりの最大数の7を足して、 //67372032+7=67372039、これが桁あふれしないで計算できる要素の最大数になる //8Kの画素数は7680*4320=33177600、約3317万 private unsafe long Test4_Intrinsics_int(byte[] vs) { var vTotal = Vector256<int>.Zero; int simdLength = Vector256<int>.Count; int lastIndex = vs.Length - (vs.Length % simdLength); fixed (byte* p = vs) { for (int i = 0; i < lastIndex; i += simdLength) { vTotal = Avx2.Add(vTotal, Avx2.ConvertToVector256Int32(p + i)); } } long total = 0; int* ip = stackalloc int[simdLength]; Avx.Store(ip, vTotal); for (int j = 0; j < simdLength; j++) { total += ip[j]; } for (int i = lastIndex; i < vs.Length; i++) { total += vs[i]; } return total; } //Intrinsics + マルチスレッド、int //最大要素数は配列の分割数分増えて約5億 private unsafe long Test5_Intrinsics_int_MT(byte[] vs) { int simdLength = Vector256<int>.Count; long total = 0; Parallel.ForEach( Partitioner.Create(0, vs.Length, vs.Length / Environment.ProcessorCount), (range) => { int lastIndex = range.Item2 - (range.Item2 - range.Item1) % simdLength; var vTotal = Vector256<int>.Zero; fixed (byte* p = vs) { for (int i = range.Item1; i < lastIndex; i += simdLength) { vTotal = Avx2.Add(vTotal, Avx2.ConvertToVector256Int32(p + i)); } } int* pp = stackalloc int[simdLength]; Avx.Store(pp, vTotal); long subtotal = 0; for (int i = 0; i < simdLength; i++) { subtotal += pp[i]; } for (int i = lastIndex; i < range.Item2; i++) { subtotal += vs[i]; } System.Threading.Interlocked.Add(ref total, subtotal); }); return total; } //↑の変形、CPUスレッド数で割り切れる範囲と余りの範囲に分けて計算 //Intrinsics + マルチスレッド2、int // private unsafe long Test6_Intrinsics_int_MT2(byte[] vs) { int simdLength = Vector256<int>.Count; var bag = new ConcurrentBag<Vector256<int>>(); //割り切れる範囲 int block = vs.Length - (vs.Length % (simdLength * Environment.ProcessorCount)); Parallel.ForEach( Partitioner.Create(0, block, block / Environment.ProcessorCount), (range) => { var vTotal = Vector256<int>.Zero; fixed (byte* p = vs) { for (int i = range.Item1; i < range.Item2; i += simdLength) { vTotal = Avx2.Add(vTotal, Avx2.ConvertToVector256Int32(p + i)); } } bag.Add(vTotal); }); #region bagの集計1、遅いし桁あふれも早く、67_372_096(6737万)で桁あふれ //Vector256<int> vv = Vector256<int>.Zero; //foreach (var item in bag) //{ // vv = Avx2.Add(vv, item); //} //int* ptr = stackalloc int[simdLength]; //Avx.Store(ptr, vv); //long total = 0; //for (int i = 0; i < simdLength; i++) //{ // total += ptr[i]; //} #endregion #region bagの集計2、こっちのほうがいい、最大要素数も配列の分割数分増えて約5億 long total = 0; foreach (var item in bag) { int* pp = stackalloc int[simdLength]; Avx.Store(pp, item); for (int i = 0; i < simdLength; i++) { total += pp[i]; } } #endregion for (int i = block; i < vs.Length; i++) { total += vs[i]; } return total; } //Intrinsics + マルチスレッド3、long //longで計算、遅くなるけど桁数は大きくなる private unsafe long Test7_Intrinsics_long_MT(byte[] vs) { int simdLength = Vector256<long>.Count; long total = 0; Parallel.ForEach( Partitioner.Create(0, vs.Length, vs.Length / Environment.ProcessorCount), (range) => { int lastIndex = range.Item2 - (range.Item2 - range.Item1) % simdLength; var vTotal = Vector256<long>.Zero; fixed (byte* p = vs) { for (int i = range.Item1; i < lastIndex; i += simdLength) { vTotal = Avx2.Add(vTotal, Avx2.ConvertToVector256Int64(p + i)); } } long* pp = stackalloc long[simdLength]; Avx.Store(pp, vTotal); long subtotal = 0; for (int i = 0; i < simdLength; i++) { subtotal += pp[i]; } for (int i = lastIndex; i < range.Item2; i++) { subtotal += vs[i]; } System.Threading.Interlocked.Add(ref total, subtotal); }); return total; } //Numerics、シングルスレッド、uint private unsafe long Test8_Numerics_uint(byte[] vs) { int simdLength = Vector<byte>.Count; int lastIndex = vs.Length - (vs.Length % simdLength); Vector<uint> v = new Vector<uint>(); for (int i = 0; i < lastIndex; i += simdLength) { System.Numerics.Vector.Widen(new Vector<byte>(vs, i), out Vector<ushort> vv1, out Vector<ushort> vv2); System.Numerics.Vector.Widen(vv1, out Vector<uint> ui1, out Vector<uint> ui2); System.Numerics.Vector.Widen(vv2, out Vector<uint> ui3, out Vector<uint> ui4); v = System.Numerics.Vector.Add(v, ui1); v = System.Numerics.Vector.Add(v, ui2); v = System.Numerics.Vector.Add(v, ui3); v = System.Numerics.Vector.Add(v, ui4); } long total = 0; for (int j = 0; j < Vector<uint>.Count; j++) { total += v[j]; } for (int i = lastIndex; i < vs.Length; i++) { total += vs[i]; } return total; } //Numerics、マルチスレッド、uint private long Test9_Nunerics_uint_MT(byte[] ary) { long total = 0; int simdLength = Vector<byte>.Count; Parallel.ForEach( Partitioner.Create(0, ary.Length, ary.Length / Environment.ProcessorCount), (range) => { int lastIndex = range.Item2 - ((range.Item2 - range.Item1) % simdLength); var v = new Vector<uint>(); for (int i = range.Item1; i < lastIndex; i += simdLength) { System.Numerics.Vector.Widen(new Vector<byte>(ary, i), out Vector<ushort> vv1, out Vector<ushort> vv2); System.Numerics.Vector.Widen(vv1, out Vector<uint> ui1, out Vector<uint> ui2); System.Numerics.Vector.Widen(vv2, out Vector<uint> ui3, out Vector<uint> ui4); v = System.Numerics.Vector.Add(v, ui1); v = System.Numerics.Vector.Add(v, ui2); v = System.Numerics.Vector.Add(v, ui3); v = System.Numerics.Vector.Add(v, ui4); } long subtotal = 0; for (int i = 0; i < Vector<uint>.Count; i++) { subtotal += v[i]; } for (int i = lastIndex; i < range.Item2; i++) { subtotal += ary[i]; } System.Threading.Interlocked.Add(ref total, subtotal); }); return total; } //Numerics、マルチスレッド、long private long Test10_Numerics_long_MT(byte[] ary) { long total = 0; int simdLength = Vector<byte>.Count; Parallel.ForEach( Partitioner.Create(0, ary.Length, ary.Length / Environment.ProcessorCount), (range) => { int lastIndex = range.Item2 - ((range.Item2 - range.Item1) % simdLength); var v = new Vector<ulong>(); for (int i = range.Item1; i < lastIndex; i += simdLength) { System.Numerics.Vector.Widen(new Vector<byte>(ary, i), out Vector<ushort> vv1, out Vector<ushort> vv2); System.Numerics.Vector.Widen(vv1, out Vector<uint> ui1, out Vector<uint> ui2); System.Numerics.Vector.Widen(vv2, out Vector<uint> ui3, out Vector<uint> ui4); System.Numerics.Vector.Widen(ui1, out Vector<ulong> ul1, out Vector<ulong> ul2); System.Numerics.Vector.Widen(ui2, out Vector<ulong> ul3, out Vector<ulong> ul4); System.Numerics.Vector.Widen(ui3, out Vector<ulong> ul5, out Vector<ulong> ul6); System.Numerics.Vector.Widen(ui4, out Vector<ulong> ul7, out Vector<ulong> ul8); v = System.Numerics.Vector.Add(v, ul1); v = System.Numerics.Vector.Add(v, ul2); v = System.Numerics.Vector.Add(v, ul3); v = System.Numerics.Vector.Add(v, ul4); v = System.Numerics.Vector.Add(v, ul5); v = System.Numerics.Vector.Add(v, ul6); v = System.Numerics.Vector.Add(v, ul7); v = System.Numerics.Vector.Add(v, ul8); } ulong subtotal = 0; for (int i = 0; i < Vector<ulong>.Count; i++) { subtotal += v[i]; } for (int i = lastIndex; i < range.Item2; i++) { subtotal += ary[i]; } System.Threading.Interlocked.Add(ref total, (long)subtotal); }); return total; } #region 未使用 //Numerics、シングルスレッド、uint、Span private unsafe long Test81_Numerics_uint(Span<byte> span) { int simdLength = Vector<byte>.Count; int lastIndex = span.Length - (span.Length % simdLength); Vector<uint> v = new Vector<uint>(); for (int i = 0; i < lastIndex; i += simdLength) { System.Numerics.Vector.Widen(new Vector<byte>(span.Slice(i)), out Vector<ushort> vv1, out Vector<ushort> vv2); System.Numerics.Vector.Widen(vv1, out Vector<uint> ui1, out Vector<uint> ui2); System.Numerics.Vector.Widen(vv2, out Vector<uint> ui3, out Vector<uint> ui4); v = System.Numerics.Vector.Add(v, ui1); v = System.Numerics.Vector.Add(v, ui2); v = System.Numerics.Vector.Add(v, ui3); v = System.Numerics.Vector.Add(v, ui4); } long total = 0; for (int j = 0; j < Vector<uint>.Count; j++) { total += v[j]; } for (int i = lastIndex; i < span.Length; i++) { total += span[i]; } return total; } //↑と組み合わせて使う //Numerics、マルチスレッド、uint、Spanにしてシングルスレッドに渡して処理 private long Test91_Nunerics_uint_MT(byte[] ary) { long total = 0; int simdLength = Vector<byte>.Count; //Span<byte> span = new Span<byte>(ary); Parallel.ForEach( Partitioner.Create(0, ary.Length, ary.Length / Environment.ProcessorCount), (range) => { var s = new Span<byte>(ary); long subtotal = Test81_Numerics_uint(s.Slice(range.Item1, range.Item2-range.Item1)); System.Threading.Interlocked.Add(ref total, subtotal); }); return total; } #endregion private void MyInitialize() { MyArray = new byte[ELEMENT_COUNT]; //指定値で埋める var span = new Span<byte>(MyArray); span.Fill(255); //最後の要素 //MyArray[ELEMENT_COUNT - 1] = 100; //ランダム値 //var r = new Random(); //r.NextBytes(MyArray); ////0~255までを連番で繰り返し //for (int i = 0; i < ELEMENT_COUNT; i++) //{ // MyArray[i] = (byte)i; //} } #region 時間計測 private void MyExe(Func<byte[], long> func, TextBlock tb, byte[] vs) { long total = 0; var sw = new Stopwatch(); sw.Start(); for (int i = 0; i < LOOP_COUNT; i++) { total = func(vs); } sw.Stop(); this.Dispatcher.Invoke(() => tb.Text = $"処理時間:{sw.Elapsed.TotalSeconds.ToString("000.000")}秒 {total.ToString("N0")} | {func.Method.Name}"); } //一斉テスト用 private async void MyExeAll() { var sw = new Stopwatch(); sw.Start(); this.IsEnabled = false; await Task.Run(() => MyExe(Test1_Normal, Tb1, MyArray)); await Task.Run(() => MyExe(Test2_Normal_MT, Tb2, MyArray)); await Task.Run(() => MyExe(Test3_Normal4, Tb3, MyArray)); await Task.Run(() => MyExe(Test4_Intrinsics_int, Tb4, MyArray)); await Task.Run(() => MyExe(Test5_Intrinsics_int_MT, Tb5, MyArray)); await Task.Run(() => MyExe(Test6_Intrinsics_int_MT2, Tb6, MyArray)); await Task.Run(() => MyExe(Test7_Intrinsics_long_MT, Tb7, MyArray)); await Task.Run(() => MyExe(Test8_Numerics_uint, Tb8, MyArray)); await Task.Run(() => MyExe(Test9_Nunerics_uint_MT, Tb9, MyArray)); await Task.Run(() => MyExe(Test10_Numerics_long_MT, Tb10, MyArray)); this.IsEnabled = true; sw.Stop(); TbAll.Text = $"処理時間:{sw.Elapsed.TotalSeconds.ToString("000.000")}秒"; } #endregion 時間計測 } }
