WPF、カラーピッカーの土台できた

#ソフトウェア WPF、C# .NET 色彩

前回の続き、ピックアップマーカーの○印とSV(彩度と輝度)画像を付け足した

結果

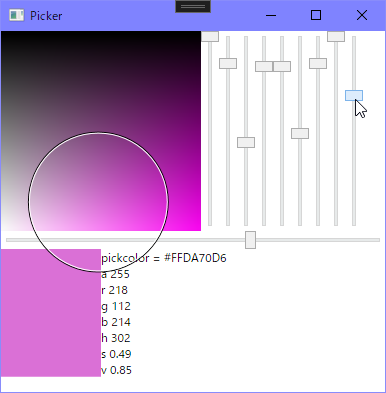

動作


色1指定で表示


色2指定で表示


ピックアップマーカーのサイズ変更


SV画像のサイズ変更、縦


SV画像のサイズ変更、横

環境

コード

全部

github.com

一部

Picker.xaml

<Window x:Class="_20230419_ColorPicker.Picker"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:_20230419_ColorPicker"
        mc:Ignorable="d"
        Title="Picker" Height="400" Width="400">
  <Grid>
    <StackPanel>
      <StackPanel Orientation="Horizontal" Height="200">
        <Image x:Name="MyImageSV" Width="200" Height="200"/>
        <Slider x:Name="MySliderA" Maximum="255" Minimum="0" SmallChange="1" LargeChange="10" Orientation="Vertical" Value="255"/>
        <Slider x:Name="MySliderR" Maximum="255" Minimum="0" SmallChange="1" LargeChange="10" Orientation="Vertical"/>
        <Slider x:Name="MySliderG" Maximum="255" Minimum="0" SmallChange="1" LargeChange="10" Orientation="Vertical"/>
        <Slider x:Name="MySliderB" Maximum="255" Minimum="0" SmallChange="1" LargeChange="10" Orientation="Vertical"/>
        <Slider x:Name="MySliderH" Maximum="360" Minimum="0" SmallChange="1" LargeChange="10" Orientation="Vertical"/>
        <Slider x:Name="MySliderS" Maximum="1" Minimum="0" SmallChange="0.01" LargeChange="0.1" Orientation="Vertical"/>
        <Slider x:Name="MySliderV" Maximum="1" Minimum="0" SmallChange="0.01" LargeChange="0.1" Orientation="Vertical"/>
        <Slider Value="{Binding ElementName=MyImageSV, Path=Height}" Minimum="10" Maximum="200" LargeChange="20" TickFrequency="20" Orientation="Vertical"/>
        <Slider Value="{Binding Marker.MarkerSize}" Minimum="10" Maximum="200" Orientation="Vertical" LargeChange="20"/>
      </StackPanel>
      <StackPanel>
        <Slider Value="{Binding ElementName=MyImageSV, Path=Width}" Minimum="10" Maximum="300" LargeChange="50"/>
        <StackPanel  Orientation="Horizontal">
          <Grid>
            <Viewbox>
              <TextBlock Text="透明度"/>
            </Viewbox>
            <Border x:Name="MyBorderPickColorSample" Width="100" Background="DodgerBlue"/>
          </Grid>
          <StackPanel>
            <TextBlock Text="{Binding PickColor, StringFormat=pickcolor \= {0}}"/>
            <TextBlock Text="{Binding A, StringFormat=a 000}"/>
            <TextBlock Text="{Binding R, StringFormat=r 000}"/>
            <TextBlock Text="{Binding G, StringFormat=g 000}"/>
            <TextBlock Text="{Binding B, StringFormat=b 000}"/>
            <TextBlock Text="{Binding H, StringFormat=h 000}"/>
            <TextBlock Text="{Binding S, StringFormat=s 0.00}"/>
            <TextBlock Text="{Binding V, StringFormat=v 0.00}"/>
          </StackPanel>
        </StackPanel>
      </StackPanel>
    </StackPanel>
  </Grid>
</Window>



Picker.xaml..cs

using System;
using System.Collections.Generic;
using System.Globalization;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Shapes;

namespace _20230419_ColorPicker
{
    /// <summary>
    /// Picker.xaml の相互作用ロジック
    /// </summary>
    public partial class Picker : Window
    {

        #region 依存関係プロパティ

        public Color PickColor
        {
            get { return (Color)GetValue(PickColorProperty); }
            set { SetValue(PickColorProperty, value); }
        }
        public static readonly DependencyProperty PickColorProperty =
            DependencyProperty.Register(nameof(PickColor), typeof(Color), typeof(Picker),
                new FrameworkPropertyMetadata(Color.FromArgb(0, 0, 0, 0),
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));

        /// <summary>
        /// HSVを再計算、RGB変更時に使用
        /// </summary>
        /// <param name="d"></param>
        /// <param name="e"></param>
        private static void OnRGB(DependencyObject d, DependencyPropertyChangedEventArgs e)
        {
            if (d is Picker mw)
            {
                if (mw.IsHSVChangNow) return;
                mw.IsRGBChangNow = true;
                (mw.H, mw.S, mw.V) = MathHSV.RGB2hsv(mw.R, mw.G, mw.B);
                mw.UpdateSVWriteableBitmap(mw.H);
                mw.IsRGBChangNow = false;
            }
        }

        /// <summary>
        /// RGBを再計算、SV変更時に使用
        /// </summary>
        /// <param name="d"></param>
        /// <param name="e"></param>
        private static void OnHSV(DependencyObject d, DependencyPropertyChangedEventArgs e)
        {
            if (d is Picker mw)
            {
                if (mw.IsRGBChangNow) return;
                mw.IsHSVChangNow = true;
                (mw.R, mw.G, mw.B) = MathHSV.Hsv2rgb(mw.H, mw.S, mw.V);
                mw.IsHSVChangNow = false;
            }
        }
        private static void OnHue(DependencyObject d, DependencyPropertyChangedEventArgs e)
        {
            if (d is Picker mw)
            {
                if (mw.IsRGBChangNow) return;
                mw.IsHSVChangNow = true;
                (mw.R, mw.G, mw.B) = MathHSV.Hsv2rgb(mw.H, mw.S, mw.V);
                mw.UpdateSVWriteableBitmap(mw.H);
                mw.IsHSVChangNow = false;
            }
        }

        public byte R
        {
            get { return (byte)GetValue(RProperty); }
            set { SetValue(RProperty, value); }
        }
        public static readonly DependencyProperty RProperty =
            DependencyProperty.Register(nameof(R), typeof(byte), typeof(Picker),
                new FrameworkPropertyMetadata(byte.MinValue,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault,
                    new PropertyChangedCallback(OnRGB)));


        public byte G
        {
            get { return (byte)GetValue(GProperty); }
            set { SetValue(GProperty, value); }
        }
        public static readonly DependencyProperty GProperty =
            DependencyProperty.Register(nameof(G), typeof(byte), typeof(Picker),
                new FrameworkPropertyMetadata(byte.MinValue,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault,
                    new PropertyChangedCallback(OnRGB)));

        public byte B
        {
            get { return (byte)GetValue(BProperty); }
            set { SetValue(BProperty, value); }
        }
        public static readonly DependencyProperty BProperty =
            DependencyProperty.Register(nameof(B), typeof(byte), typeof(Picker),
                new FrameworkPropertyMetadata(byte.MinValue,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault,
                    new PropertyChangedCallback(OnRGB)));

        public byte A
        {
            get { return (byte)GetValue(AProperty); }
            set { SetValue(AProperty, value); }
        }
        public static readonly DependencyProperty AProperty =
            DependencyProperty.Register(nameof(A), typeof(byte), typeof(Picker),
                new FrameworkPropertyMetadata(byte.MinValue,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));

        public double H
        {
            get { return (double)GetValue(HProperty); }
            set { SetValue(HProperty, value); }
        }
        public static readonly DependencyProperty HProperty =
            DependencyProperty.Register(nameof(H), typeof(double), typeof(Picker),
                new FrameworkPropertyMetadata(0.0,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault,
                    new PropertyChangedCallback(OnHue)));
        public double S
        {
            get { return (double)GetValue(SProperty); }
            set { SetValue(SProperty, value); }
        }
        public static readonly DependencyProperty SProperty =
            DependencyProperty.Register(nameof(S), typeof(double), typeof(Picker),
                new FrameworkPropertyMetadata(0.0,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault,
                    new PropertyChangedCallback(OnHSV)));

        public double V
        {
            get { return (double)GetValue(VProperty); }
            set { SetValue(VProperty, value); }
        }
        public static readonly DependencyProperty VProperty =
            DependencyProperty.Register(nameof(V), typeof(double), typeof(Picker),
                new FrameworkPropertyMetadata(0.0,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault,
                    new PropertyChangedCallback(OnHSV)));


        public double MarkerSize
        {
            get { return (double)GetValue(MarkerSizeProperty); }
            set { SetValue(MarkerSizeProperty, value); }
        }
        public static readonly DependencyProperty MarkerSizeProperty =
            DependencyProperty.Register(nameof(MarkerSize), typeof(double), typeof(Picker),
                new FrameworkPropertyMetadata(20.0,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));

        #endregion 依存関係プロパティ

        ////無限ループ防止用フラグ
        private bool IsRGBChangNow;
        private bool IsHSVChangNow;
        public Marker Marker { get; set; }
        //SVimageのBitmapSourceのサイズは16あれば十分？
        private readonly int SVBitmapSize = 16;
        public WriteableBitmap SVWriteableBitmap { get; private set; }
        public byte[] SVPixels { get; private set; }
        private readonly int SVStride;


        #region コンストラクタ

        public Picker()
        {
            InitializeComponent();


            //SV画像のSourceはWriterableBitmap、これのPixelsを書き換えるようにした
            //PixelFormats.Rgb24の1ピクセルあたりのbyte数は24/8=3
            SVStride = SVBitmapSize * 3;
            Marker = new Marker(MyImageSV);
            SVPixels = new byte[SVBitmapSize * SVStride];
            SVWriteableBitmap = new(SVBitmapSize, SVBitmapSize, 96, 96, PixelFormats.Rgb24, null);
            MyImageSV.Source = SVWriteableBitmap;

            DataContext = this;
            SetSliderBindings();
            SetMyBindings();
            SetMarkerBinding();
            MyImageSV.Stretch = Stretch.Fill;

            //PickColor = Color.FromArgb(200, 100, 202, 52);
            PickColor = Color.FromArgb(255, 255, 0, 0);
            Loaded += Picker_Loaded;
            Closing += Picker_Closing;

        }


        //色指定あり
        public Picker(Color color) : this()
        {
            //Color指定だけだとAとHueしか反映されないので
            //Markerコンストラクタで彩度と輝度を指定
            PickColor = color;
            var (h, s, v) = MathHSV.Color2HSV(color);
            Marker = new Marker(MyImageSV, s, v);
            //A = color.A; R = color.R; G = color.G; B = color.B;
            //(H, S, V) = MathHSV.Color2HSV(color);
        }
        #endregion コンストラクタ

        //外からの色の指定
        public void SetColor(Color color)
        {
            PickColor = color;
        }

        //Windowは閉じないで非表示
        private void Picker_Closing(object? sender, System.ComponentModel.CancelEventArgs e)
        {
            e.Cancel = true;
            this.Hide();
        }



        private void Picker_Loaded(object sender, RoutedEventArgs e)
        {
            if (AdornerLayer.GetAdornerLayer(MyImageSV) is AdornerLayer layer)
            {
                layer.Add(Marker);
            }
            //PickColor = Color.FromArgb(255, 255, 255, 255);
            //
            //SetMarkerBinding();
        }

        private void SetMarkerBinding()
        {
            SetBinding(SProperty, new Binding() { Source = Marker, Path = new PropertyPath(Marker.SaturationProperty) });
            SetBinding(VProperty, new Binding() { Source = Marker, Path = new PropertyPath(Marker.ValueProperty) });

            Marker.SetBinding(Marker.MarkerSizeProperty, new Binding() { Source = this, Path = new PropertyPath(MarkerSizeProperty) });
            MarkerSize = 40;
        }

        private void UpdateSVWriteableBitmap(double hue)
        {
            int p = 0;
            Parallel.For(0, SVBitmapSize, y =>
            {
                ParallelImageSV(p, y, SVStride, SVPixels, hue, SVBitmapSize, SVBitmapSize);
            });
            SVWriteableBitmap.WritePixels(new Int32Rect(0, 0, SVBitmapSize, SVBitmapSize), SVPixels, SVStride, 0);
        }


        private void ParallelImageSV(int p, int y, int stride, byte[] pixels, double hue, int w, int h)
        {
            double v = y / (h - 1.0);
            double ww = w - 1;
            for (int x = 0; x < w; ++x)
            {
                p = y * stride + (x * 3);
                (pixels[p], pixels[p + 1], pixels[p + 2]) = MathHSV.Hsv2rgb(hue, x / ww, v);
            }
        }


        private void SetMyBindings()
        {
            MultiBinding mb = new();
            mb.Bindings.Add(new Binding() { Source = this, Path = new PropertyPath(AProperty) });
            mb.Bindings.Add(new Binding() { Source = this, Path = new PropertyPath(RProperty) });
            mb.Bindings.Add(new Binding() { Source = this, Path = new PropertyPath(GProperty) });
            mb.Bindings.Add(new Binding() { Source = this, Path = new PropertyPath(BProperty) });
            mb.Converter = new ConverterARGB2Color();
            SetBinding(PickColorProperty, mb);

            MyBorderPickColorSample.SetBinding(BackgroundProperty, new Binding() { Source = this, Path = new PropertyPath(PickColorProperty), Converter = new ConverterColor2Brush() }); ;
        }

        private void SetSliderBindings()
        {
            MySliderA.SetBinding(Slider.ValueProperty, new Binding() { Source = this, Path = new PropertyPath(AProperty) });
            MySliderR.SetBinding(Slider.ValueProperty, new Binding() { Source = this, Path = new PropertyPath(RProperty) });
            MySliderG.SetBinding(Slider.ValueProperty, new Binding() { Source = this, Path = new PropertyPath(GProperty) });
            MySliderB.SetBinding(Slider.ValueProperty, new Binding() { Source = this, Path = new PropertyPath(BProperty) });
            MySliderH.SetBinding(Slider.ValueProperty, new Binding() { Source = this, Path = new PropertyPath(HProperty) });
            MySliderS.SetBinding(Slider.ValueProperty, new Binding() { Source = this, Path = new PropertyPath(SProperty) });
            MySliderV.SetBinding(Slider.ValueProperty, new Binding() { Source = this, Path = new PropertyPath(VProperty) });

        }


    }

    public class ConverterColor2Brush : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
        {
            Color c = (Color)value;
            return new SolidColorBrush(c);
        }

        public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
        {
            throw new NotImplementedException();
        }
    }

    public class ConverterARGB2Color : IMultiValueConverter
    {
        public object Convert(object[] values, Type targetType, object parameter, CultureInfo culture)
        {
            byte a = (byte)values[0];
            byte r = (byte)values[1];
            byte g = (byte)values[2];
            byte b = (byte)values[3];
            return Color.FromArgb(a, r, g, b);
        }

        public object[] ConvertBack(object value, Type[] targetTypes, object parameter, CultureInfo culture)
        {
            Color cb = (Color)value;
            object[] result = new object[4];
            result[0] = cb.A;
            result[1] = cb.R;
            result[2] = cb.G;
            result[3] = cb.B;
            return result;
        }
    }
}



PickMarker.cs

using System;
using System.Globalization;
using System.Windows.Controls.Primitives;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Shapes;
using System.Windows;

namespace _20230419_ColorPicker
{
    public class Marker : Adorner
    {
        #region 依存関係プロパティ

        public double Saturation
        {
            get { return (double)GetValue(SaturationProperty); }
            set { SetValue(SaturationProperty, value); }
        }
        public static readonly DependencyProperty SaturationProperty =
            DependencyProperty.Register(nameof(Saturation), typeof(double), typeof(Marker),
                new FrameworkPropertyMetadata(0.0,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));

        public double Value
        {
            get { return (double)GetValue(ValueProperty); }
            set { SetValue(ValueProperty, value); }
        }
        public static readonly DependencyProperty ValueProperty =
            DependencyProperty.Register(nameof(Value), typeof(double), typeof(Marker),
                new FrameworkPropertyMetadata(0.0,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));

        public double MarkerSize
        {
            get { return (double)GetValue(MarkerSizeProperty); }
            set { SetValue(MarkerSizeProperty, value); }
        }
        public static readonly DependencyProperty MarkerSizeProperty =
            DependencyProperty.Register(nameof(MarkerSize), typeof(double), typeof(Marker),
                new FrameworkPropertyMetadata(20.0,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));

        public SolidColorBrush Color1
        {
            get { return (SolidColorBrush)GetValue(Color1Property); }
            set { SetValue(Color1Property, value); }
        }
        public static readonly DependencyProperty Color1Property =
            DependencyProperty.Register(nameof(Color1), typeof(SolidColorBrush), typeof(Marker),
                new FrameworkPropertyMetadata(Brushes.Black,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));

        public SolidColorBrush Color2
        {
            get { return (SolidColorBrush)GetValue(Color2Property); }
            set { SetValue(Color2Property, value); }
        }
        public static readonly DependencyProperty Color2Property =
            DependencyProperty.Register(nameof(Color2), typeof(SolidColorBrush), typeof(Marker),
                new FrameworkPropertyMetadata(Brushes.White,
                    FrameworkPropertyMetadataOptions.AffectsRender |
                    FrameworkPropertyMetadataOptions.AffectsMeasure |
                    FrameworkPropertyMetadataOptions.BindsTwoWayByDefault));
        #endregion 依存関係プロパティ



        private VisualCollection MyVisuals { get; set; }
        protected override int VisualChildrenCount => MyVisuals.Count;
        protected override Visual GetVisualChild(int index) => MyVisuals[index];

        public Thumb MarkerThumb;
        public Canvas MyCanvas;
        public FrameworkElement TargetElement;

        private Point DiffPoint;

        #region コンストラクタ

        //通常
        public Marker(FrameworkElement adornedElement) : base(adornedElement)
        {
            TargetElement = adornedElement;

            MyVisuals = new(this);
            MyCanvas = new();
            MyVisuals.Add(MyCanvas);
            MarkerThumb = new Thumb();
            SetMyCanvas();
            SetMarker();
            SetMarkerTemplate();
            MarkerThumb.DragDelta += Marker_DragDelta;
            MarkerThumb.DragCompleted += (s, e) => { DiffPoint = new(); };
        }

        //色指定で開くとき、彩度と輝度の指定が必要
        public Marker(FrameworkElement adornedElement, double saturation, double value) : this(adornedElement)
        {
            Saturation = saturation;
            Value = value;
        }

        #endregion コンストラクタ


        //
        private void SetMyCanvas()
        {
            MyCanvas.Background = Brushes.Transparent;
            MyCanvas.MouseLeftButtonDown += MyCanvas_MouseLeftButtonDown;
            MyCanvas.Children.Add(MarkerThumb);
            MyCanvas.SetBinding(WidthProperty, new Binding() { Source = this, Path = new PropertyPath(ActualWidthProperty) });
            MyCanvas.SetBinding(HeightProperty, new Binding() { Source = this, Path = new PropertyPath(ActualHeightProperty) });
        }

        //SaturationとValueをクリック座標に相当する値に更新＋
        //更新前後の座標差を記録、これは
        //続けてドラッグ移動した場合に使う
        private void MyCanvas_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            Point pp = Mouse.GetPosition(MyCanvas);
            double dx = pp.X - Canvas.GetLeft(MarkerThumb) - (MarkerSize / 2.0);
            double dy = pp.Y - Canvas.GetTop(MarkerThumb) - (MarkerSize / 2.0);
            DiffPoint = new Point(dx, dy);

            double xx = pp.X / TargetElement.ActualWidth;
            if (xx < 0) xx = 0; if (xx > 1.0) xx = 1.0;
            Saturation = xx;

            double yy = pp.Y / TargetElement.ActualHeight;
            if (yy < 0) yy = 0; if (yy > 1.0) yy = 1.0;
            Value = yy;

            MarkerThumb.RaiseEvent(e);
        }

        private void SetMarker()
        {
            //SV変化でtopleft変化
            MultiBinding mb = new();
            mb.Bindings.Add(new Binding() { Source = this, Path = new PropertyPath(MarkerSizeProperty) });
            mb.Bindings.Add(new Binding() { Source = this, Path = new PropertyPath(SaturationProperty) });
            mb.Bindings.Add(new Binding() { Source = TargetElement, Path = new PropertyPath(ActualWidthProperty) });
            mb.Converter = new ConverterTopLeft2XY();
            MarkerThumb.SetBinding(Canvas.LeftProperty, mb);

            mb = new();
            mb.Bindings.Add(new Binding() { Source = this, Path = new PropertyPath(MarkerSizeProperty) });
            mb.Bindings.Add(new Binding() { Source = this, Path = new PropertyPath(ValueProperty) });
            mb.Bindings.Add(new Binding() { Source = TargetElement, Path = new PropertyPath(ActualHeightProperty) });
            mb.Converter = new ConverterTopLeft2XY();
            MarkerThumb.SetBinding(Canvas.TopProperty, mb);

        }
        private void SetMarkerTemplate()
        {
            FrameworkElementFactory factory = new(typeof(Grid));
            FrameworkElementFactory e1 = new(typeof(Ellipse));
            e1.SetValue(WidthProperty, new Binding() { Source = this, Path = new PropertyPath(MarkerSizeProperty) });
            e1.SetValue(HeightProperty, new Binding() { Source = this, Path = new PropertyPath(MarkerSizeProperty) });
            e1.SetValue(Ellipse.StrokeProperty, new Binding() { Source = this, Path = new PropertyPath(Color1Property) });
            e1.SetValue(Ellipse.FillProperty, Brushes.Transparent);
            FrameworkElementFactory e2 = new(typeof(Ellipse));
            e2.SetValue(WidthProperty, new Binding()
            {
                Source = this,
                Path = new PropertyPath(MarkerSizeProperty),
                Converter = new ConverterDownSize()
            });
            e2.SetValue(HeightProperty, new Binding()
            {
                Source = this,
                Path = new PropertyPath(MarkerSizeProperty),
                Converter = new ConverterDownSize()
            });
            e2.SetValue(Ellipse.StrokeProperty, new Binding() { Source = this, Path = new PropertyPath(Color2Property), });
            factory.AppendChild(e1);
            factory.AppendChild(e2);
            MarkerThumb.Template = new() { VisualTree = factory };

        }

        private void Marker_DragDelta(object sender, DragDeltaEventArgs e)
        {
            var left = Canvas.GetLeft(MarkerThumb);
            var top = Canvas.GetTop(MarkerThumb);
            var h = e.HorizontalChange;
            var v = e.VerticalChange;
            // ドラッグ移動ではtopleftを指定ではなく、saturation,Valueを計算して指定
            var dx = DiffPoint.X + (MarkerSize / 2.0);
            var dy = DiffPoint.Y + (MarkerSize / 2.0);
            double ll = left + h + dx;
            double xx = ll / TargetElement.ActualWidth;
            if (xx < 0) xx = 0; if (xx > 1.0) xx = 1.0;
            Saturation = xx;
            double tt = top + v + dy;
            double yy = tt / TargetElement.ActualHeight;
            if (yy < 0) yy = 0; if (yy > 1.0) yy = 1.0;
            Value = yy;
        }


        protected override Size ArrangeOverride(Size finalSize)
        {
            MyCanvas.Arrange(new Rect(finalSize));
            return base.ArrangeOverride(finalSize);
        }
    }



    public class ConverterTopLeft2XY : IMultiValueConverter
    {
        public object Convert(object[] values, Type targetType, object parameter, CultureInfo culture)
        {
            double markerSize = (double)values[0];
            double sv = (double)values[1];
            double targetSize = (double)values[2];
            double result = (sv * targetSize) - (markerSize / 2.0);
            return result;
        }

        public object[] ConvertBack(object value, Type[] targetTypes, object parameter, CultureInfo culture)
        {
            throw new NotImplementedException();
        }
    }


    public class ConverterDownSize : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
        {
            double size = ((double)value) - 2.0;
            if (size < 0) { size = 0; }
            return size;
        }

        public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
        {
            throw new NotImplementedException();
        }
    }
}



SV画像は16x16ピクセル

彩度と輝度の画像をSV画像って呼んでいる
色相Hueが変化したらSV画像も更新する

色相変化でSV画像更新

SV画像にはWriteableBitmapを使っている
SとVの値は0から1の間なので、以前は画像サイズを100x100ピクセルにしてそのまま表示していた
これを今回は16x16にした

16x16のSV画像
これの拡大表示はWPF(.NET？)に任せている
拡大表示はFill指定


拡大したぶんは表示が劣化しているはずなんだけど、16x16あれば気にならない

拡大劣化比較
並べたら違うってのはわかるけど、16x16を単体で見たら気づかない
2x2のたった4ピクセルでもそれなりに表示してくれるのはおもしろい

SV画像の更新

以前は更新のたびにWriteableBitmap自体を、Newで作り直していたので効率が良くなかった
今回はWriteableBitmapの中のピクセルデータのbyte配列の値だけを作り直すようにした
これでメモリ使用量が減って処理速度も上がったはず
実際にはSV画像サイズを小さくしたから誤差レベルなんだけど、気分がいい

SV画像の生成と更新
今見てて思ったのが
生成部でParallel.Forを使っているけど16x16まで小さな画像なら普通のforでも処理速度変わらないかも


関連記事

前回のWPF記事は一昨日
gogowaten.hatenablog.com

以前のカラーピッカーは5年前
gogowaten.hatenablog.com
